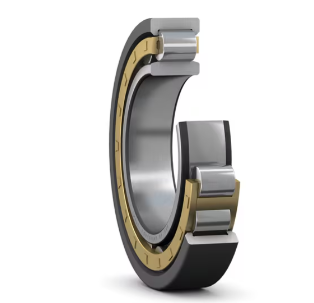

SKF NU 212 ECM/C3VL0241 Bearings wholesale price | On sale

                                                                                    INQUIRY



Dimensions



Bore diameter 60 mm
Outside diameter 110 mm
Width 22 mm
Product net weight0.93 kg

Basic dynamic load rating 108 kN
Basic static load rating 102 kN
Reference speed 6 700 r/min
Limiting speed 7 500 r/min


d
60 mm
Bore diameter
D
110 mm
Outside diameter
B
22 mm
Width
D1
≈95.7 mm
Shoulder diameter outer ring
F
72 mm
Raceway diameter inner ring
s
max.1.4 mm
Permissible axial displacement from the normal position of one bearing ring relative to the other
r1,2
min.1.5 mm
Chamfer dimension
r3,4
min.1.5 mm
Chamfer dimension
