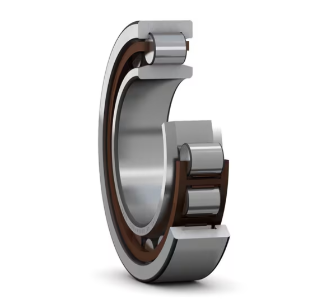

SKF NUP 214 ECP Bearings wholesale price | On sale

                                                                                    INQUIRY


Dimensions
Bore diameter 70 mm
Outside diameter 125 mm
Width 24 mm
Product net weight 1.17 kg

Basic dynamic load rating 137 kN
Basic static load rating 137 kN
Reference speed 6 000 r/min
Limiting speed 6 300 r/min

SKF performance classSKF Explorer

d
70 mm
Bore diameter
D
125 mm
Outside diameter
B
24 mm
Width
d1
≈89.4 mm
Shoulder diameter of inner ring
D1
≈108.3 mm
Shoulder diameter of outer ring
F
83.5 mm
Raceway diameter of inner ring
r1,2
min.1.5 mm
Chamfer dimension
r3,4
min.1.5 mm
Chamfer dimension of loose flange ring
