SKF NNU 4176 M Bearings wholesale price | On sale

                                                                                    INQUIRY

      Dimensions
Bore diameter 380 mm
Outside diameter 620 mm
Width 243 mm

Product net weight 284 kg

Basic dynamic load rating 4 290 kN
Basic static load rating 8 500 kN
Reference speed 850 r/min
Limiting speed 1 100 r/min

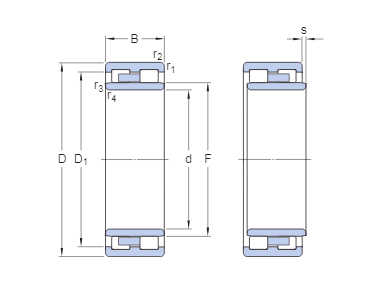

Dimensions
d
380 mm Bore diameter
D
620 mm Outside diameter
B
243 mm Overall bearing width
D1
≈550 mm Shoulder diameter outer ring
F
442 mm Raceway diameter inner ring
r1,2
min.5 mm Chamfer dimension outer ring
r3,4
min.5 mm Chamfer dimension inner ring
s
max.7.4 mm Permissible axial displacement from the normal position of one bearing ring relative to the other
