      Dimensions
Bore diameter 400 mm
Outside diameter 560 mm
Width 205 mm
Product net weight 161 kg

Basic dynamic load rating 3 140 kN
Basic static load rating 7 800 kN
Reference speed 800 r/min
Limiting speed 1 200 r/min

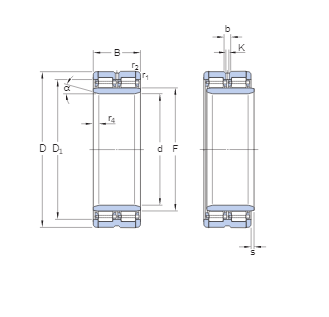

d
400 mm Bore diameter
D
560 mm Outside diameter
B
205 mm Overall bearing width
D1
≈509 mm Shoulder diameter outer ring
F
445 mm Raceway diameter inner ring
b
16.7 mm Width of annular groove
K
9 mm Diameter lubrication hole
r1,2
min.2 mm Chamfer dimension outer ring
r3,4
min.13.6 mm Chamfer dimension inner ring
α
20 ° Chamfer angle inner ring
s
max.2.7 mm Permissible axial displacement from the normal position of one bearing ring relative to the other
